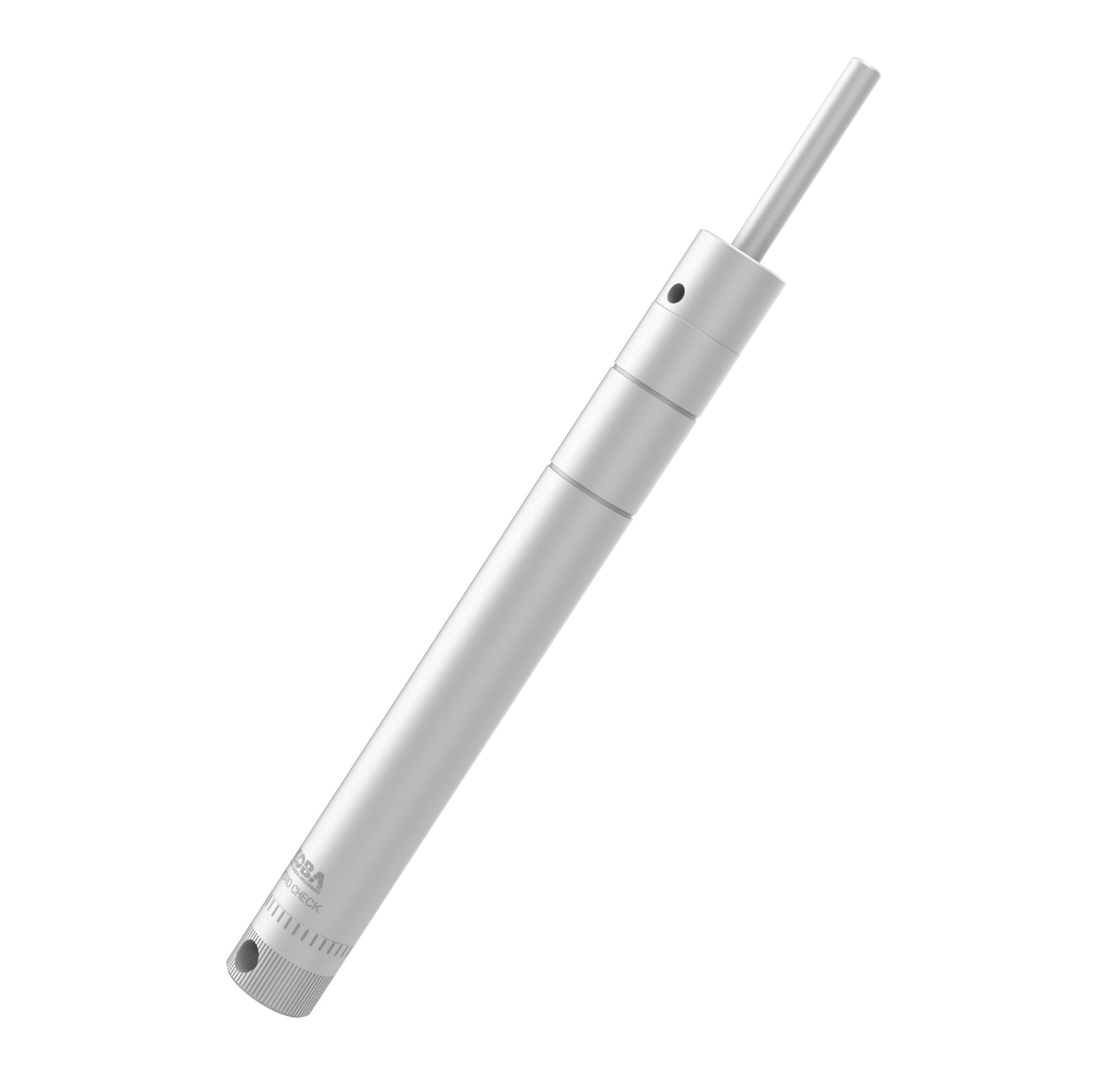

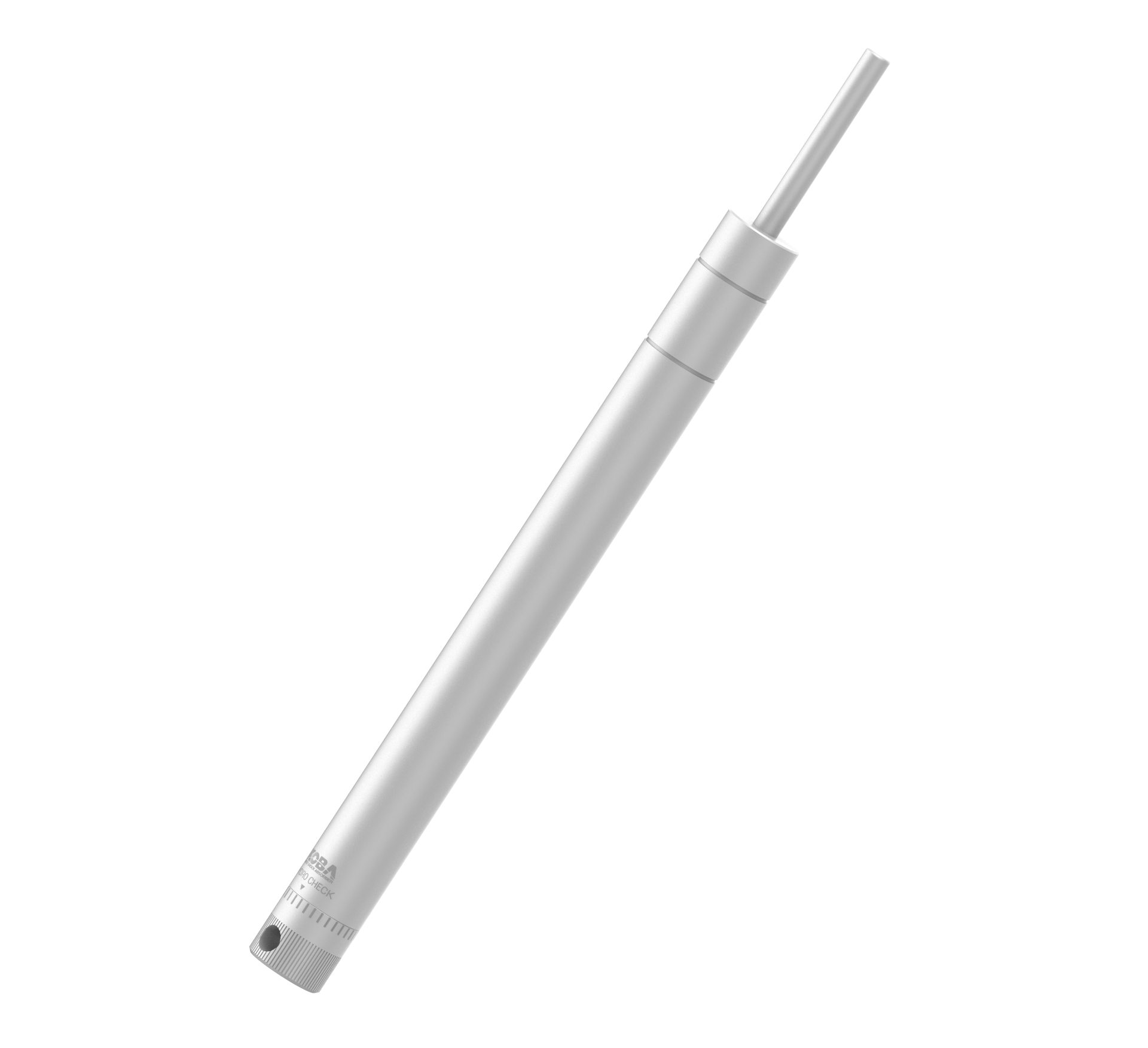

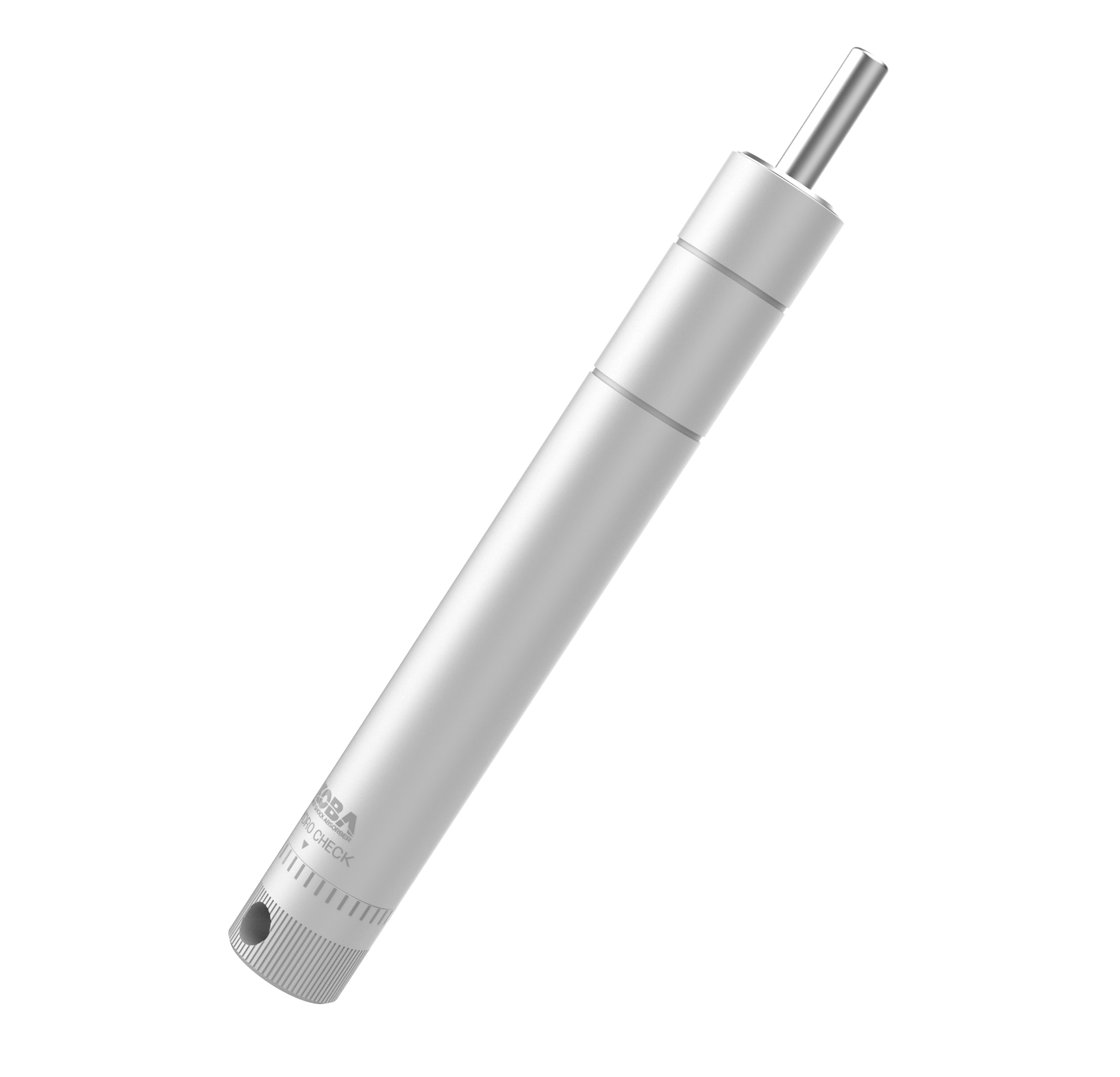

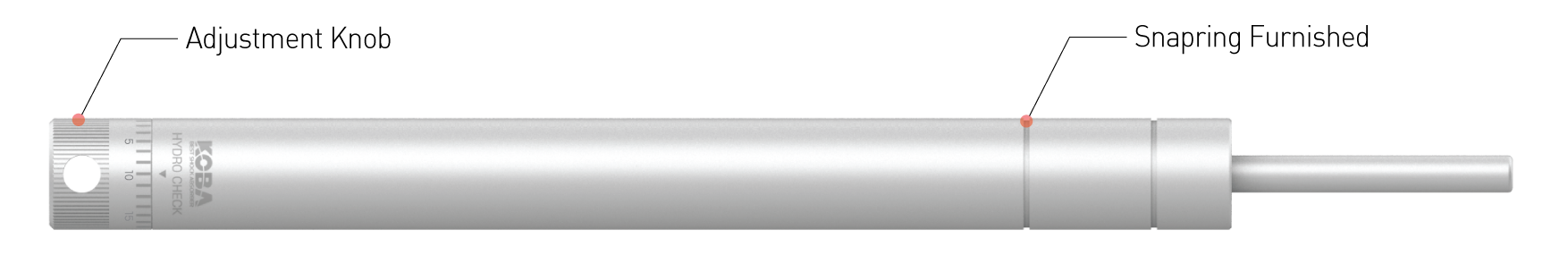

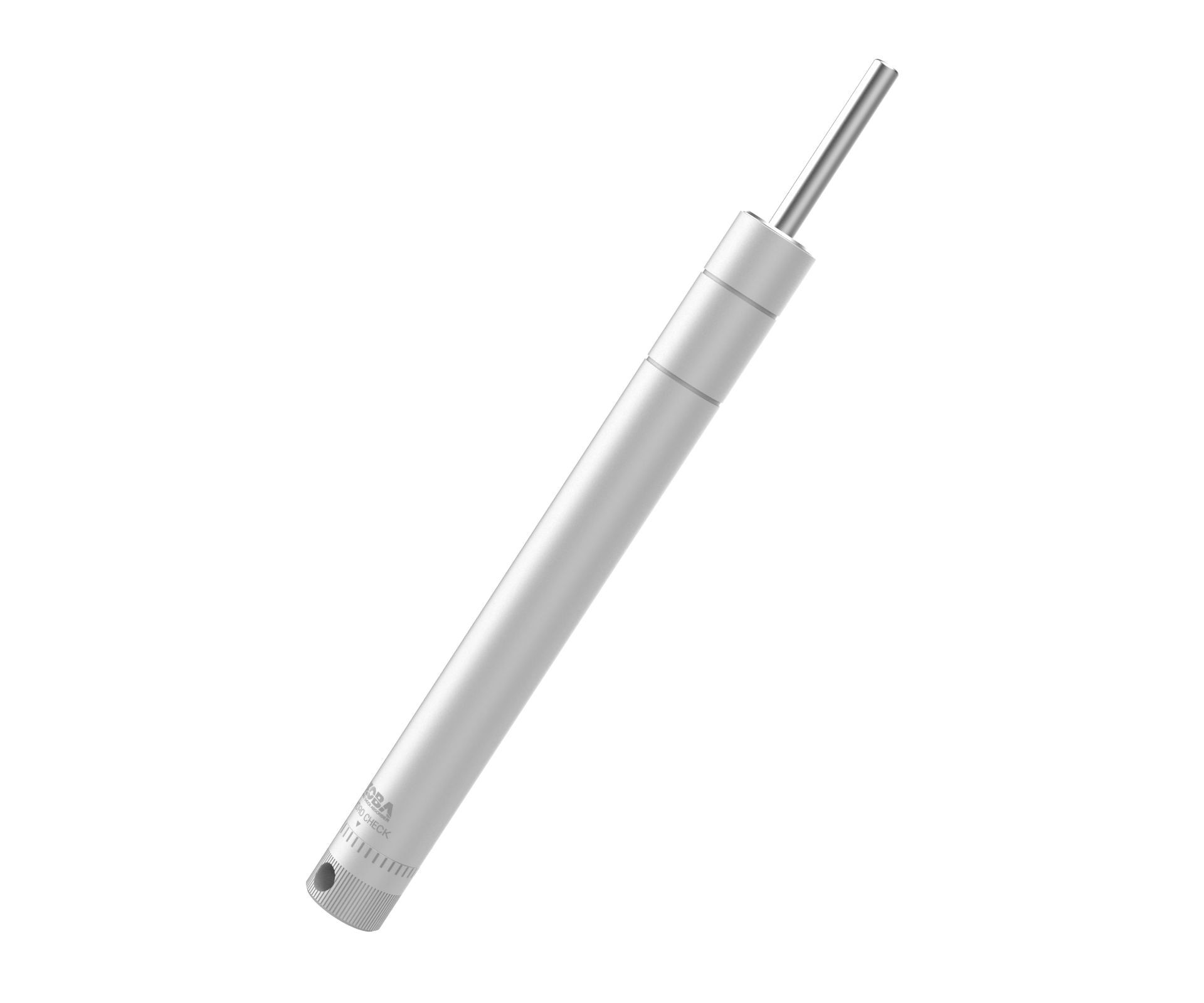

The KHC Series is a hydraulic speed control device (Hydro Check) designed for precise control of the speed and position of moving objects.

By utilizing the flow resistance of hydraulic oil, it maintains a constant piston movement speed and enables stable speed and position control under various stroke conditions.

In particular, the wide adjustment range (up to approximately 300°) allows precise speed settings according to operating conditions, providing high repeatability in precision machining and automated processes.

Precision Speed and Position Control (Speed & Position Control)
Enables not only feed speed control but also position control, improving process precision.

Wide Adjustment Range (Up to 300° Adjustment)
The wide adjustment range allows precise speed settings for various operating conditions.

Constant Feed Control
Internal oil is automatically filtered, maintaining a constant speed under all conditions.

Optimized for High-Precision Processes
Provides optimized performance for precision machining processes such as auto feed, drilling, cutting, and grinding.

Excellent Durability Structure
A Hard Chrome Piston Rod and protective coated body ensure high durability even in industrial environments.

Easy Installation and Setup
The Snap Ring and Mounting Block structure allow easy installation and position adjustment.

Wide Operating Conditions

Speed Range: approximately 0.2 ~ 30 mm/s
Load Range: up to approximately 5,000 N
Temperature Range: -10℃ ~ 80℃ (optional expansion available)

Drilling and Tapping Equipment ｜ Cutting and Grinding Machines ｜ Automatic Feeding Systems ｜ Machine Tools and Precision Machining Equipment ｜ Inspection and Testing Equipment ｜ Safety and Control Devices
